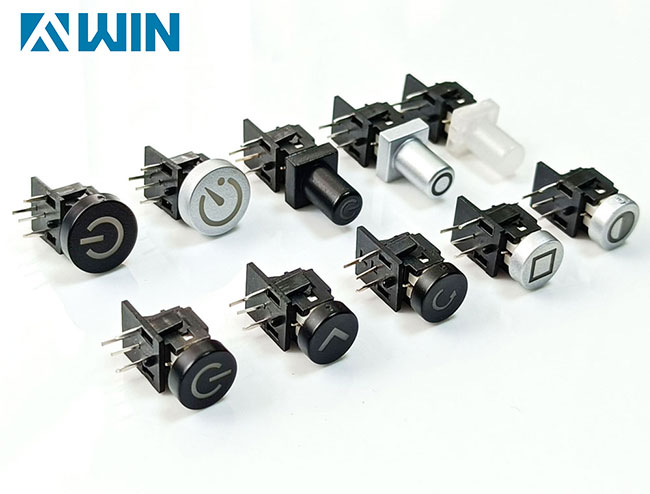

8 pin illuminated bi-color tactile switch

The 8-pin illuminated bi-color tactile switch is a device designed to meet various needs in electronic circuits, particularly in the control and signaling system. It is a common component used in a wide range of industrial and commercial electronic applications, including audio and video equipment, musical instruments, computer peripherals, and automotive systems.

One of the key features of the 8-pin illuminated bi-color tactile switch is its bi-color LED that provides visual feedback to users. This feature allows users to quickly and easily determine whether the switch is in the ON or OFF position. The LED also provides an added aesthetic value to the device, making it an attractive option for designers.

The tactile switch also features a tactile feedback mechanism that provides a tactile "click" when the switch is pressed. This feedback allows the user to know when the switch has been activated, which can be particularly useful in situations where there is a high degree of ambient noise.

The switch is designed with eight pins, which makes it easy to connect to other devices in the circuit. In addition, the switch is equipped with a momentary contact, which means that it only stays in the ON position as long as it is being pressed. When the user releases the switch, it returns to the OFF position automatically.

The switch is also durable and long-lasting, making it ideal for use in harsh environments. Its design includes a robust housing that protects the switch from dust, moisture, and other environmental factors that could damage it.

When selecting an 8-pin illuminated bi-color tactile switch, it is essential to consider several factors. First, it is important to determine the voltage and current ratings needed for the application to ensure that the switch can handle the electrical load without malfunctioning. The switch's actuation force should also be considered, as it can affect the user experience and overall performance.

The switch's mounting type should also be considered since it can affect the switch's ease of installation and overall layout of the circuit. The switch can be mounted either through-hole or surface mount.

In summary, the 8-pin illuminated bi-color tactile switch is a versatile and reliable component that adds both functionality and aesthetic appeal to electronic circuits. Its tactile feedback, bi-color LED, and durability make it suitable for a wide variety of applications. When selecting the switch, it is essential to consider factors such as voltage and current ratings, actuation force, and mounting type to ensure optimal performance.
