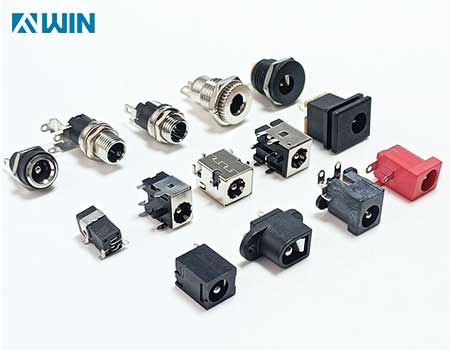

DC power jack/connector

DC power jacks, also known as DC power connectors or DC barrel connectors, are essential components used in a wide range of electronic devices and systems to provide a reliable power input. In this comprehensive guide, we will explore the significance, applications, types, specifications, considerations, and advantages associated with DC power jacks/connectors.


1. Significance of DC Power Jacks/Connectors:

  • DC power jacks/connectors serve as the interface between external power sources, such as AC adapters or power supplies, and electronic devices/systems requiring DC power input.
  • They ensure a secure and reliable connection for delivering electrical power to power internal circuits, components, and subsystems, enabling the proper functioning of electronic devices.

2. Applications:

  • Consumer Electronics: DC power jacks/connectors are widely used in consumer electronics devices, including laptops, routers, modems, set-top boxes, LED lighting systems, monitors, and audio/video equipment.
  • Industrial Equipment: They are employed in industrial machinery, control panels, instrumentation, and automation systems for providing power to sensors, actuators, motors, PLCs (Programmable Logic Controllers), and other components.
  • Automotive Electronics: In automotive applications, DC power jacks/connectors power various onboard systems, accessories, and devices, such as GPS navigation systems, dash cameras, entertainment systems, and diagnostic tools.
  • Medical Devices: They are utilized in medical devices and equipment, including patient monitors, diagnostic instruments, medical imaging systems, and therapeutic devices, to ensure reliable power supply for critical healthcare applications.

3. Types of DC Power Jacks/Connectors:

  • Barrel-Type Connectors: The most common type, featuring a cylindrical shape with an inner pin (center conductor) and outer sleeve (outer conductor). Available in standard sizes such as 2.1mm and 2.5mm inner diameter.
  • DIN Connectors: Featuring a circular or rectangular design with multiple pins for power and signal transmission. Commonly used in industrial and automotive applications.
  • USB Type-C Connectors: A versatile and reversible connector used for power delivery, data transfer, and audio/video signals in modern electronic devices and accessories.
  • Proprietary Connectors: Custom-designed connectors specific to certain manufacturers or devices, often used in laptops, tablets, and smartphones.

4. Specifications:

  • Voltage Rating: DC power jacks/connectors are rated for a specific voltage level, typically ranging from 5 volts to 24 volts or higher, depending on the application and device requirements.
  • Current Rating: Specifies the maximum electrical current that the connector can safely carry without exceeding its thermal limits or causing damage.
  • Polarity: Determines the orientation of the center pin (positive or negative) concerning the outer sleeve, crucial for ensuring compatibility with the device's power requirements.
  • Connector Size: Refers to the dimensions and configurations of the connector, including inner diameter, outer diameter, and length, which vary depending on the connector type and application.

5. Considerations for Selection:

  • Compatibility: Ensure compatibility between the DC power jack/connector and the device or system in terms of voltage, current, polarity, and connector type.
  • Mechanical Durability: Consider factors such as insertion cycles, contact resistance, and environmental conditions to ensure the connector's mechanical robustness and reliability over its operational life.
  • Mounting Type: Choose the appropriate mounting type (PCB mount, panel mount, or cable mount) based on the installation requirements and available space in the device or system.
  • Connector Type: Select the most suitable connector type (barrel-type, DIN, USB Type-C, or proprietary) based on the device's specifications and compatibility with the corresponding power adapter or cable.

6. Advantages:

  • Convenience: DC power jacks/connectors provide a convenient and standardized means of connecting external power sources to electronic devices, simplifying the setup and operation process.
  • Versatility: They offer versatility in terms of compatibility with a wide range of devices and applications across various industries, making them a universal power interface solution.
  • Reliability: When properly selected and installed, DC power jacks/connectors ensure reliable power transmission, minimizing the risk of power interruptions or electrical faults that could damage sensitive electronic components.

In summary, DC power jacks/connectors are essential components used in a myriad of electronic devices and systems for delivering DC power input. Understanding their applications, types, specifications, considerations, and advantages is crucial for selecting the appropriate connector and ensuring reliable power supply in electronic designs and installations.
