Illuminated PCB Mount Video Processor Switches
The TS15 series Audio/Video illumianted push buttons switches featuring with concave, engraved, square caps in two common sizes 12*12mm and 15*15mm for design flexibility in LED System Solutions applications,gold plating contacts terminals insures high reliability and long operations life of 200 thousand.
Fvwin TS15 series illuminated control broadcasting push button is a stable PCB mount Led button switch,there is emitting color with red,green,blue,white and yellow,that has four three various cap sizes of 12mm,15mm,16mm are optional,we also provide engraved logo on the sculptured square caps for the Matrix switcher illuminated LED button;
The illuminated push button with LED offering with smooth tactile hand feeling,it’s mainly applied for broadcast system,LED stage lighting console and other video processor solutions.

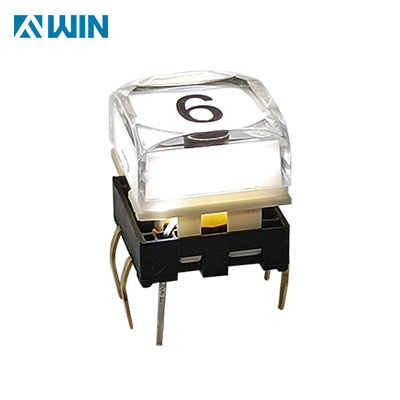

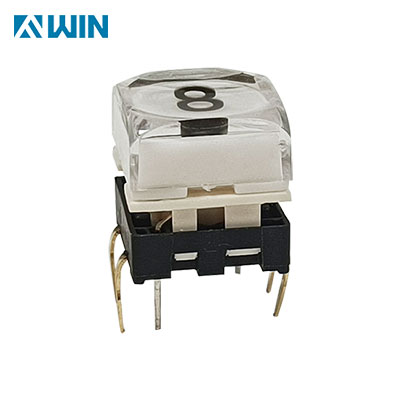

Model:TS15-9W56WTX
Size:12x12x23mm
Circuit:SPST
Rated:12VDC ,100mA
Contact Resistance:200mΩ(max)
Insulation Resistance:100MΩ(min)
Withstand Voltage:250VAC for 1 minute
Operation Force:250±100gf
Total Travel:4.5±0.2mm
Function:OFF-(ON) Momentary
Soldering Temperature:350℃ for 3 seconds
Using Temperature:-20℃ ~ 70℃
Life:1,000,000 cycles
1. 12.0mm/15.0mm /16mm/17.4mm cap size options
2. Sculpted Clear Cap style or Laser etch on clear lens for LED Control System & LED Display Screen Solution.
3. An ideal solution for all broadcast panel need
4. Available with super bright red,green,blue,white.yellow LED
Fvwin Electronics is leading manufacturer and supplier of illuminated tact switch,LED push button switch and push button switches as well as plastic injection mould etc,more info pls click http://www.fvwindz.com
