XLR Connector

3 Pin Female PCB Mount XLR Connector

View PDF materials

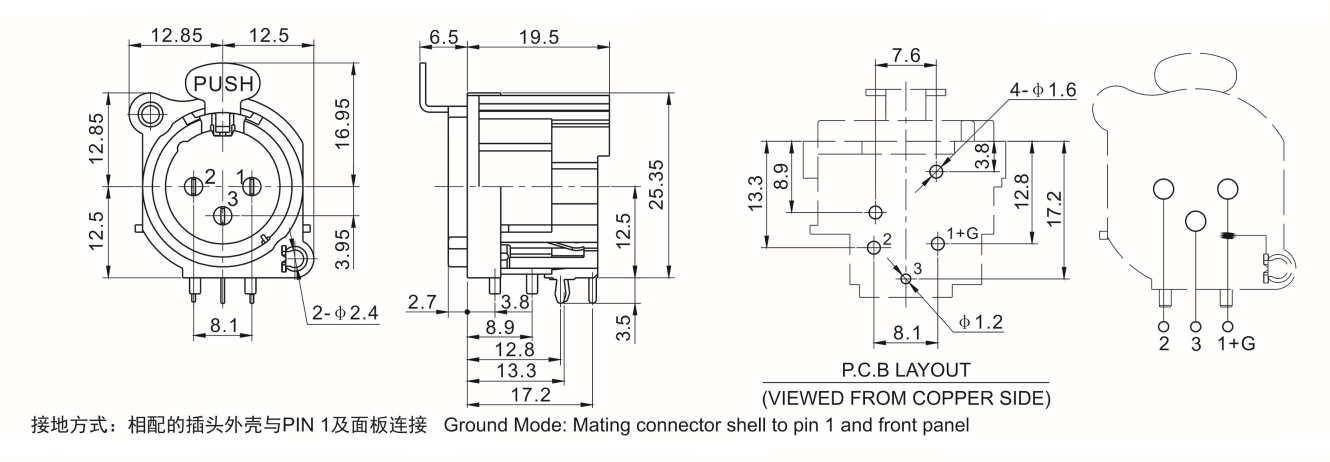

3 Pin Female PCB Mount XLR Connector(图1)

The XLR socket connector has the difference of female and male,the male connector has contact pin and female XLR connector is receptacle,according to the international convention,the male XLR connector is output terminal,and the male is input terminal.

XLR connector is also called as Cannon socket or Cannon terminal,the XLR means the terminal of contact surface with rubber,so the XLR derives from it.The XLR also has latch push construction,in general,the XLR terminal has three pins.

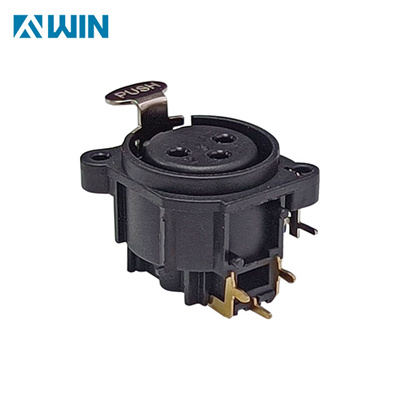

3 Pin Female PCB Mount XLR Connector(图2)
