Momentary Push Button Switches

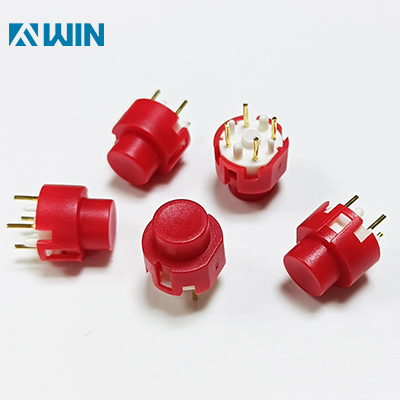

SPST Momentary Key Button Switch
The TS4 series key push button is a through hole SPST momentary key switch,it offers a variety of button shell color options,we also accept to customized the housing color as your requirements,it has gold plated terminal that has good conductivity in the PCB.the TS4 series momentary key switch has typical applications to video and audio equipment,electronic games,industry controls and home appliances.
1. Positive and smooth tactile feedback
2. High temperature
3. A variety of colors & styles
4. Non Illuminated versions available
5. ROHS compliant and compatible
Switch Operation | Momentary |
Mounting Type | Through Hole |
Illuminated | No |
Contact Configuration | Single Pole Single Throw (SPST) |
Panel Cut Out Diameter | 11.5mm |
Actuator Colour | Grey/black/blue/orange/yellow/red |
Voltage Rating | 30V DC |
Contact Current | 100 mA |
Actuator Shape | Round |
Housing Colour | Grey/black/blue/orange/yellow/red |
Terminal Type | PC Pin |
Actuator Type | Button |

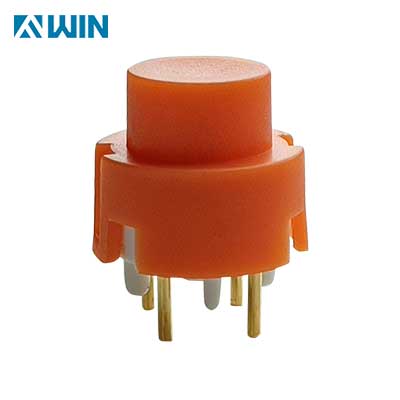

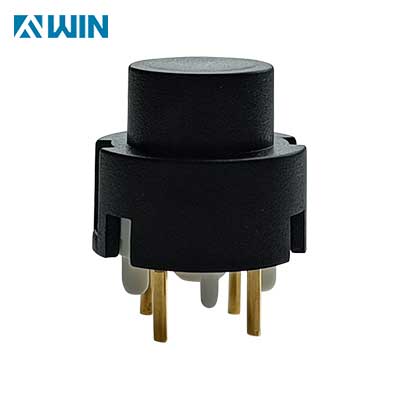

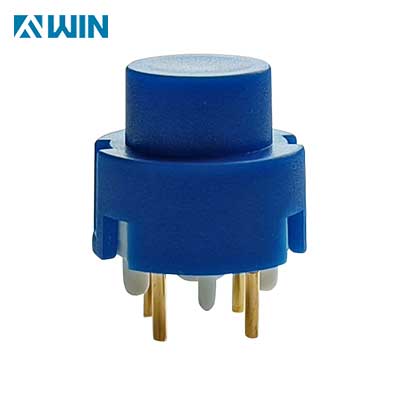

The actuator color can be customized a variety of colors
Most of our customers are from Europe and America as well as Asia,they are in the market for audio interface and medical apparatus and instruments ,security monitoring,vending machine.Our illuminated tact switch button provides full solutions for kinds of industries.
Q1:Can I have a trial order before bulk production?
A1:Yes.
Q2: What about the delivery time?
A2: Stable delivery. 7-15 working days.
Q3: Do you test all your goods before delivery?
A3: Yes, we have 100% test before delivery.
Q4: What is the MOQ for your products ?
A4: The MOQ of most of our product is 1000pcs
